Illustration of five puffins sitting on grass with the text 'Labor and Delivery Unit'.

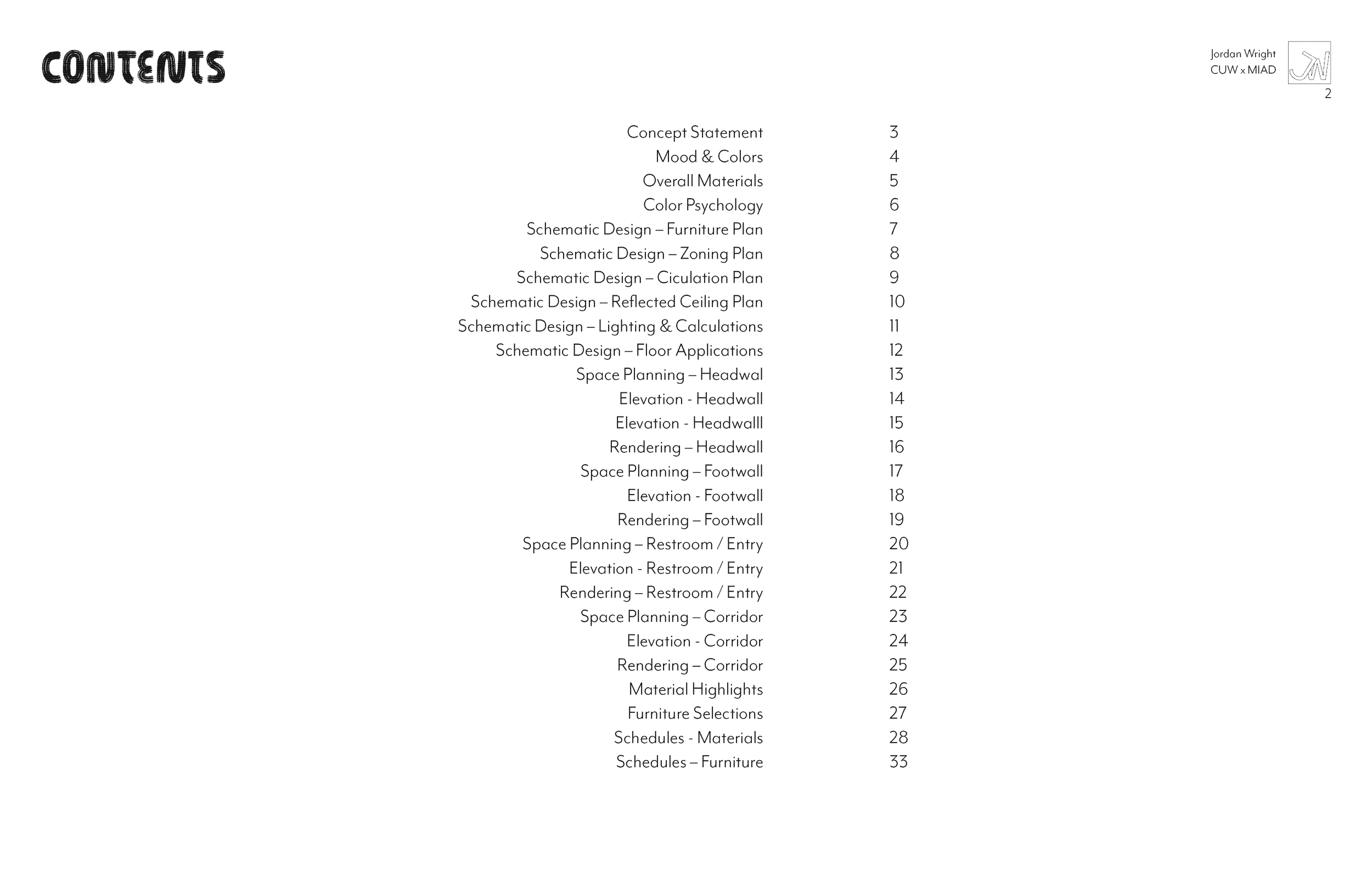

Table of contents page with a list of topics and page numbers. The titles include Concept Statement, Mood & Colors, Overall Materials, Color Psychology, various schematic design plans, space planning, elevation, rendering, space planning, and materia
Illustration of a healthcare worker with brown skin, wearing glasses, a face mask, a blue head covering, and a white coat, with a text description about birthing suite design.
A collage of six images showcasing natural textures, animals, and colors with a color palette on the right labeled as Inviting, Natural, and Clean.
Color palette and material options for furniture and design, including fabric samples, wood finishes, and tile patterns, with icons of a sofa, chair, and showerhead.

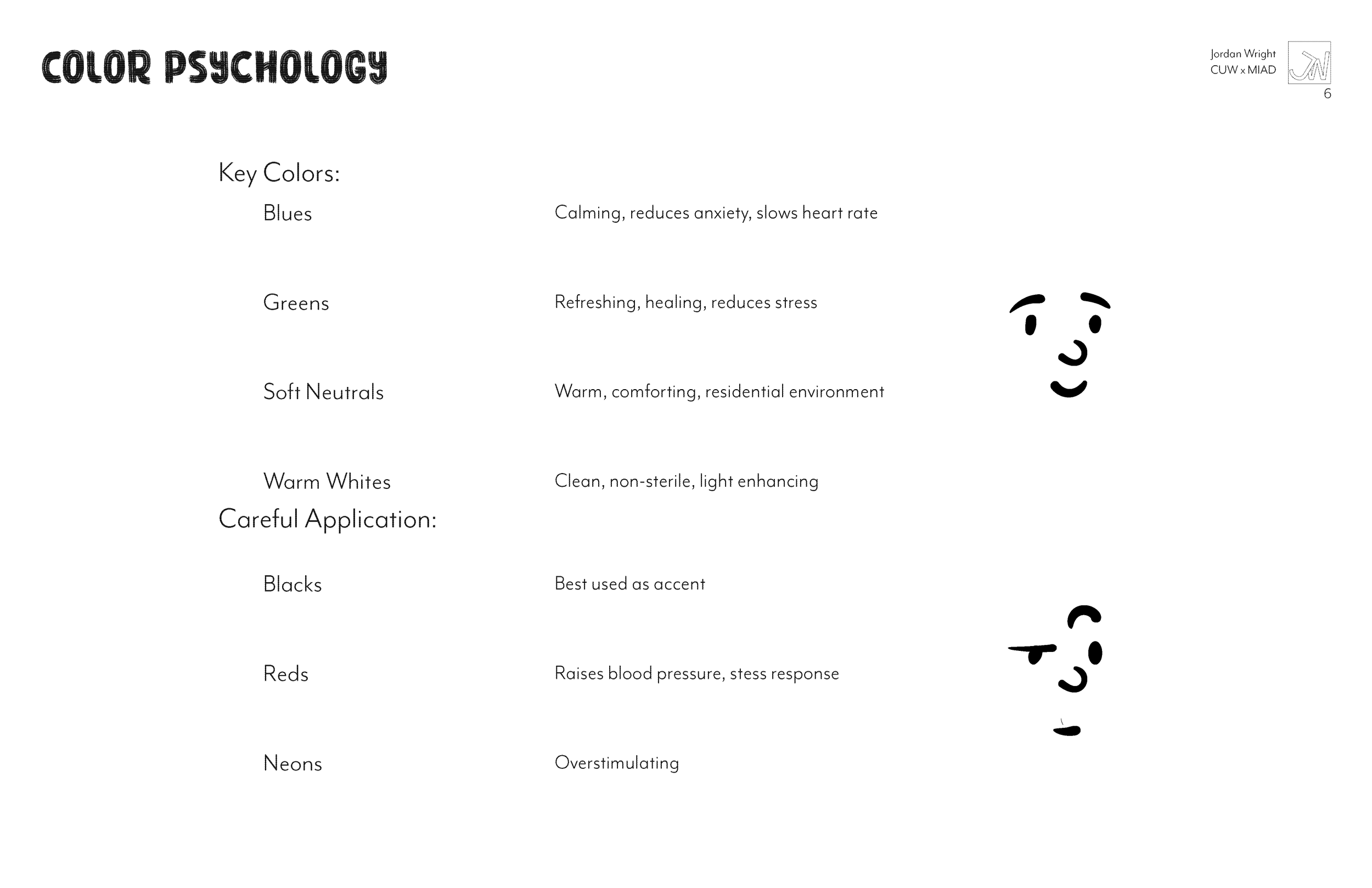

An infographic titled "Color Psychology" explaining key colors and their effects, with two cartoon faces illustrating emotional responses.

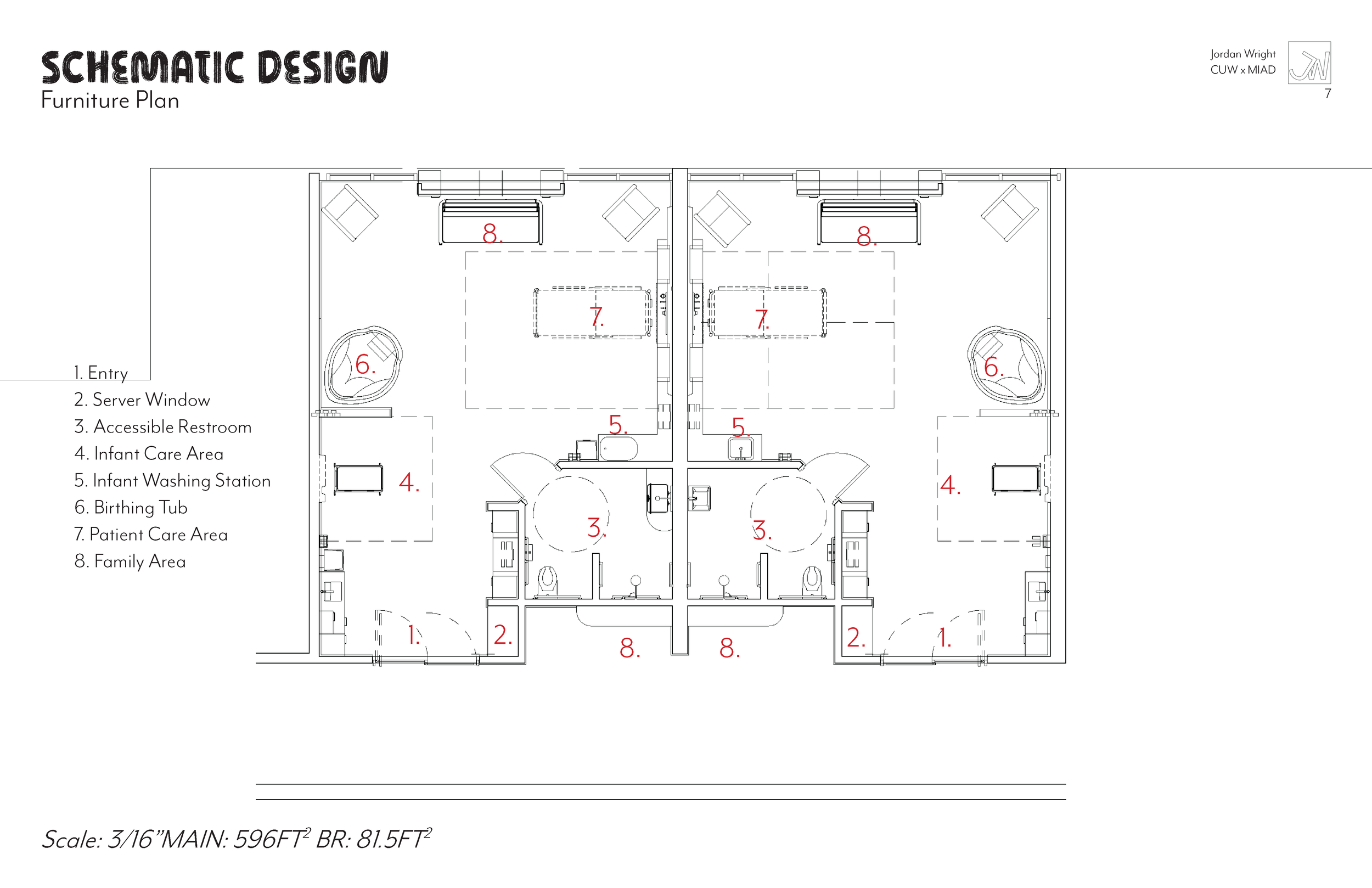

Schematic design of a twin pediatric care unit with labeled areas including entry, server window, accessible restroom, infant care area, infant washing station, birthing tub, patient care area, and family area.

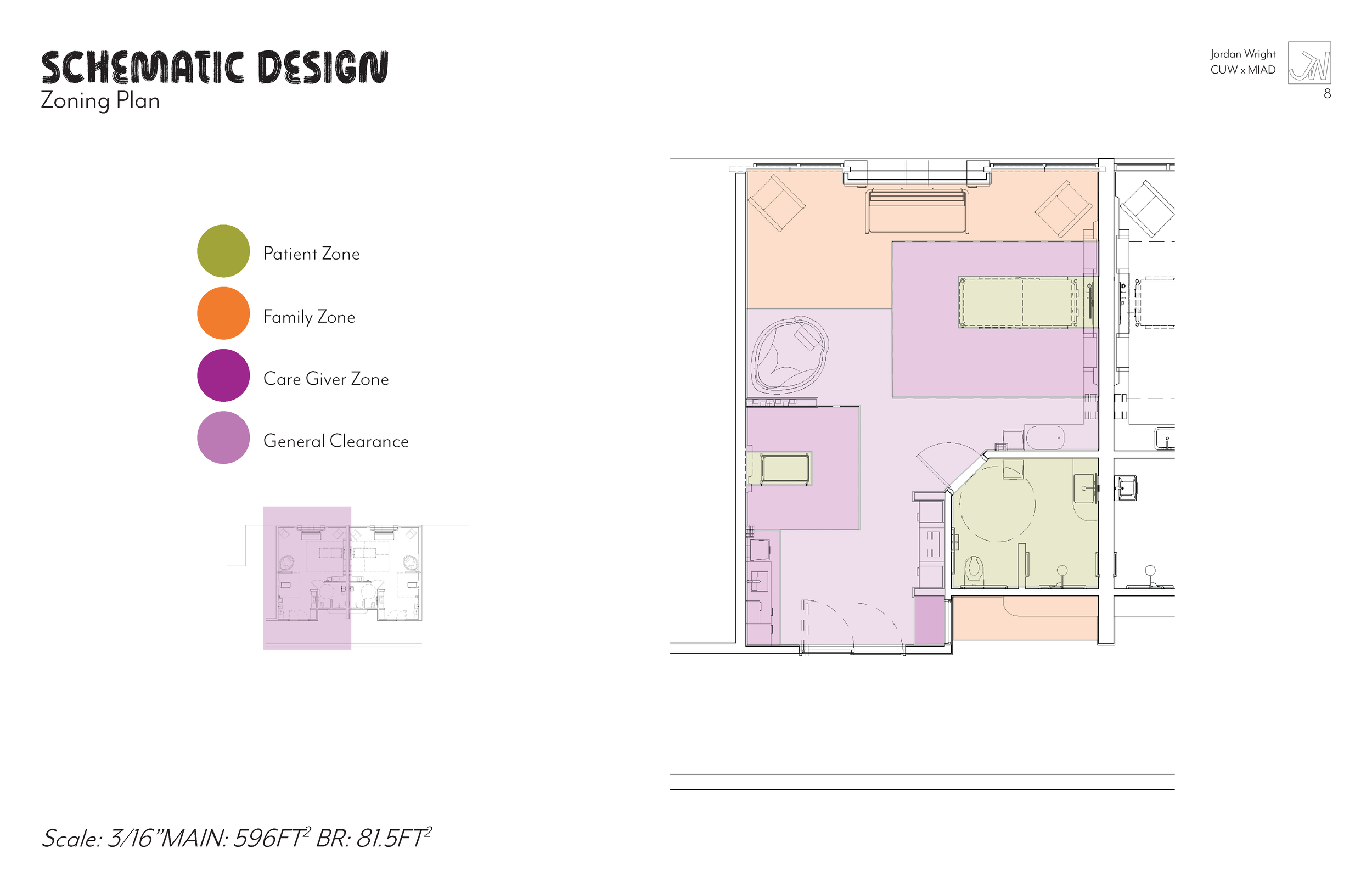

A schematic floor plan of a medical facility with color-coded zones labeled as Patient Zone, Family Zone, Care Giver Zone, and General Clearance.

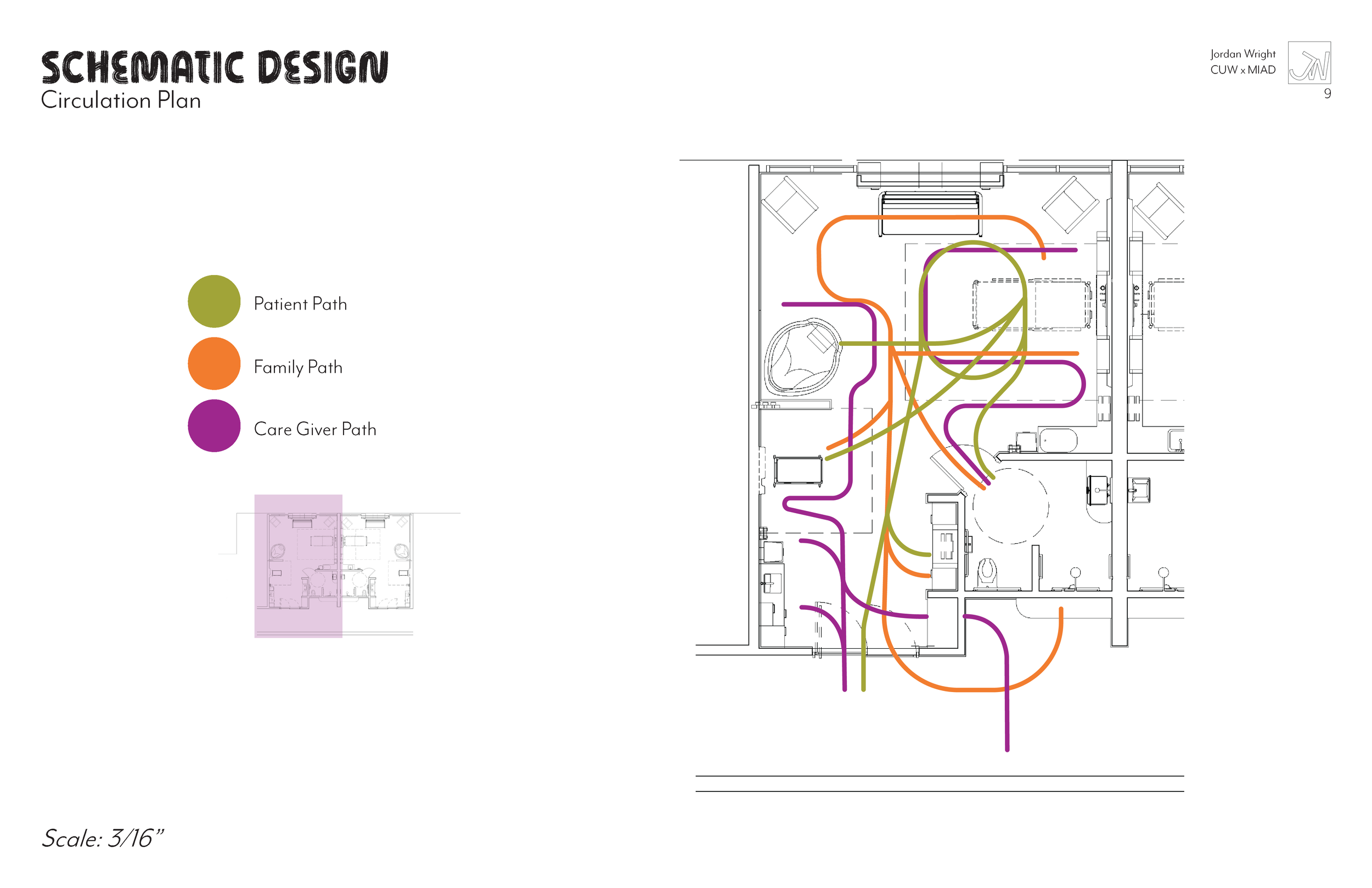

Schematic design of a circulation plan for a healthcare space, showing color-coded paths for patients, family members, and caregivers overlaid on a floor plan.

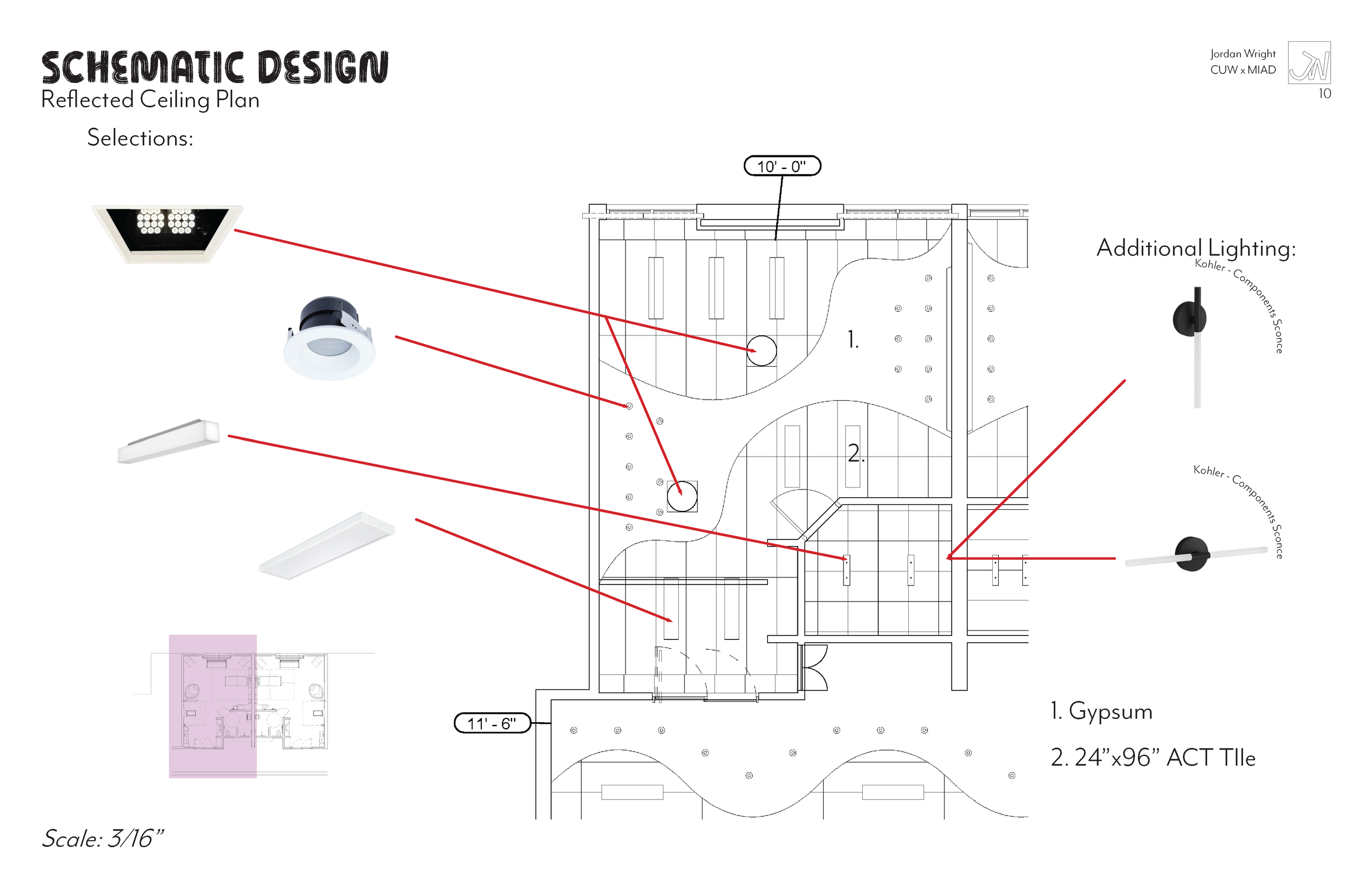

Schematic design of a reflected ceiling plan with lighting and ceiling tiles, including annotations of selections and additional lighting, with a floor plan showing measurements and layout.

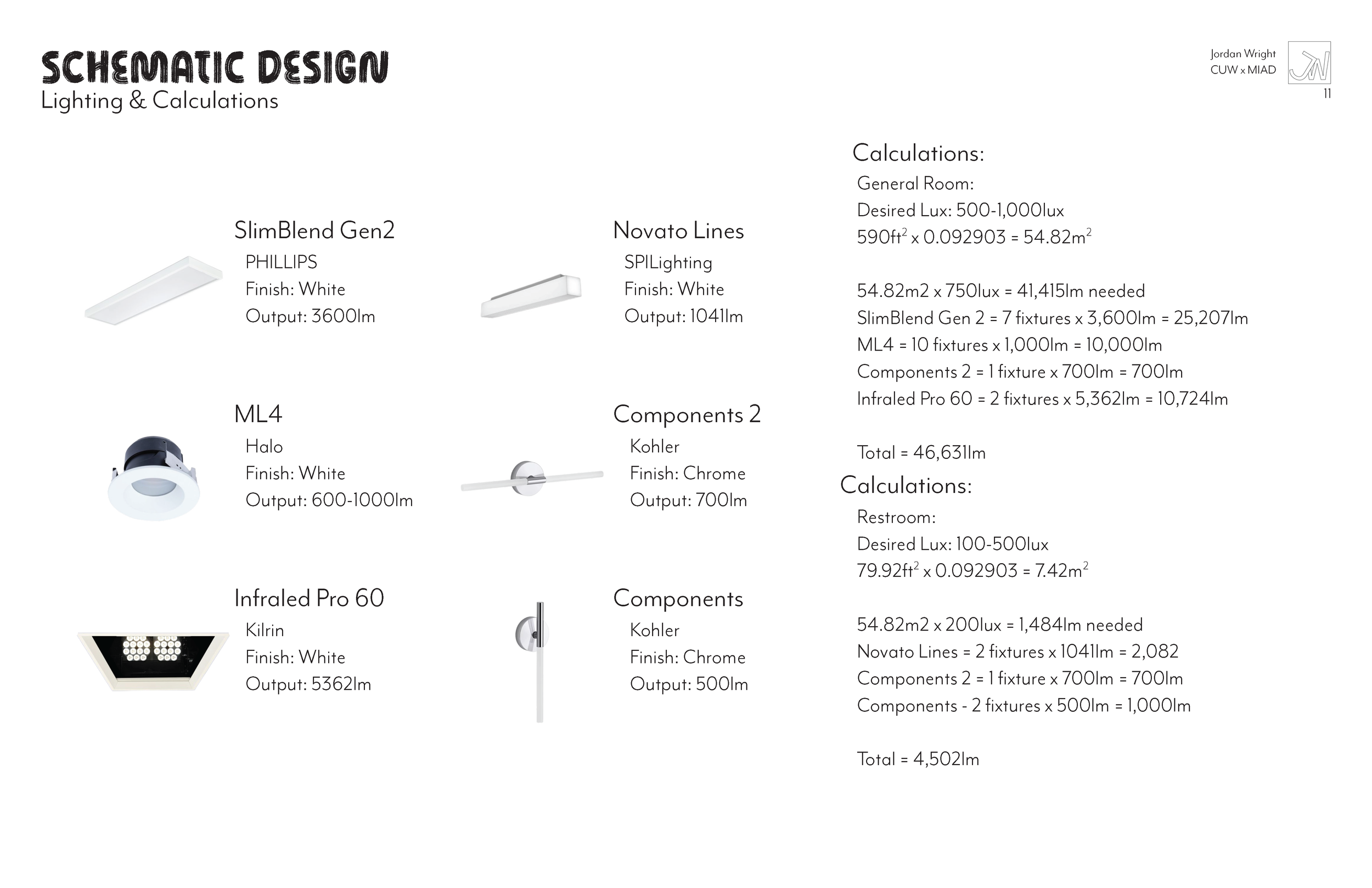

Lighting schematic design with fixture images and calculation details for a general room and restroom.

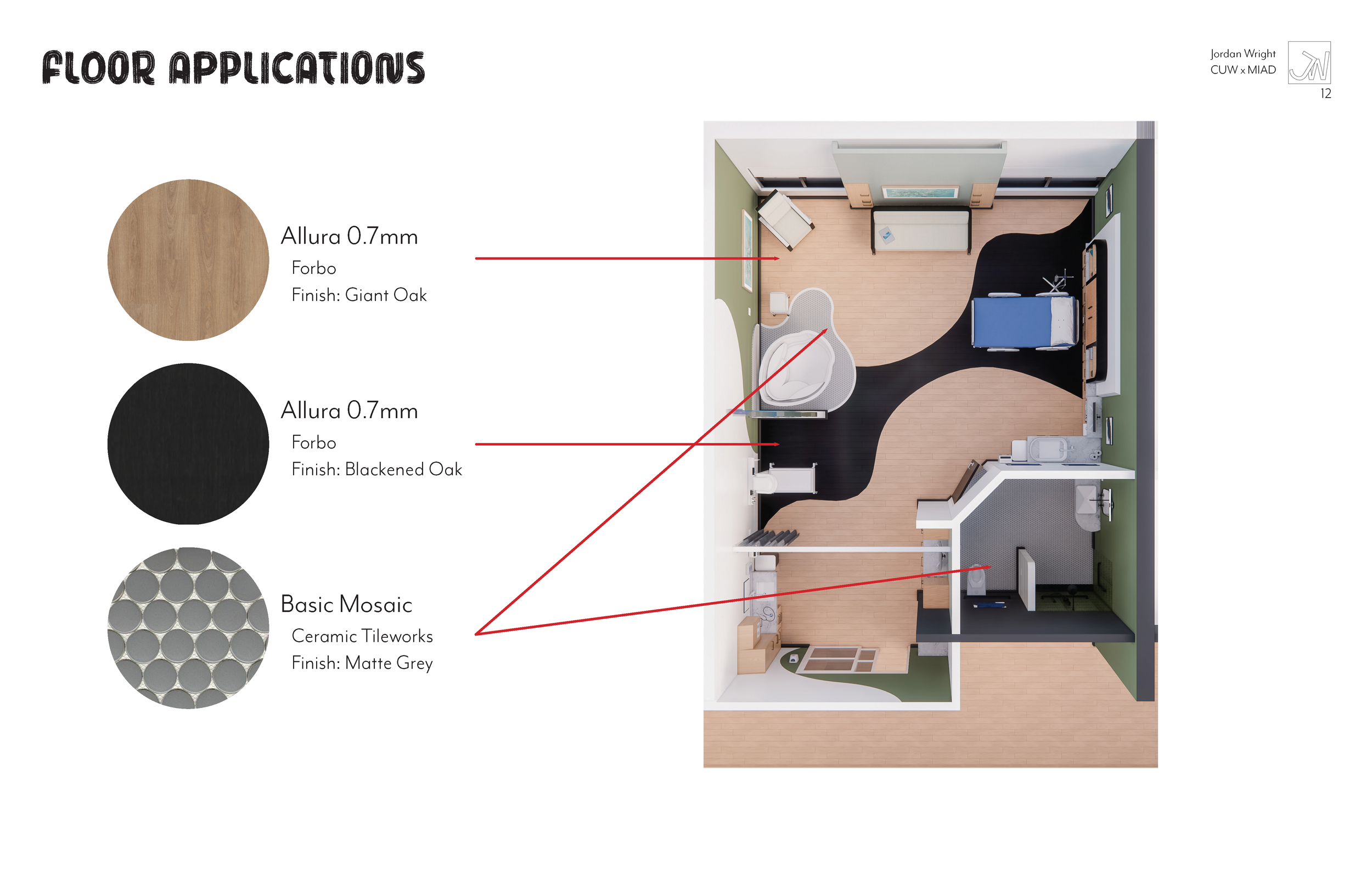

Floor plan of a room showing different flooring applications with labels and color samples indicating wood, blackened oak, and ceramic tile finishes.

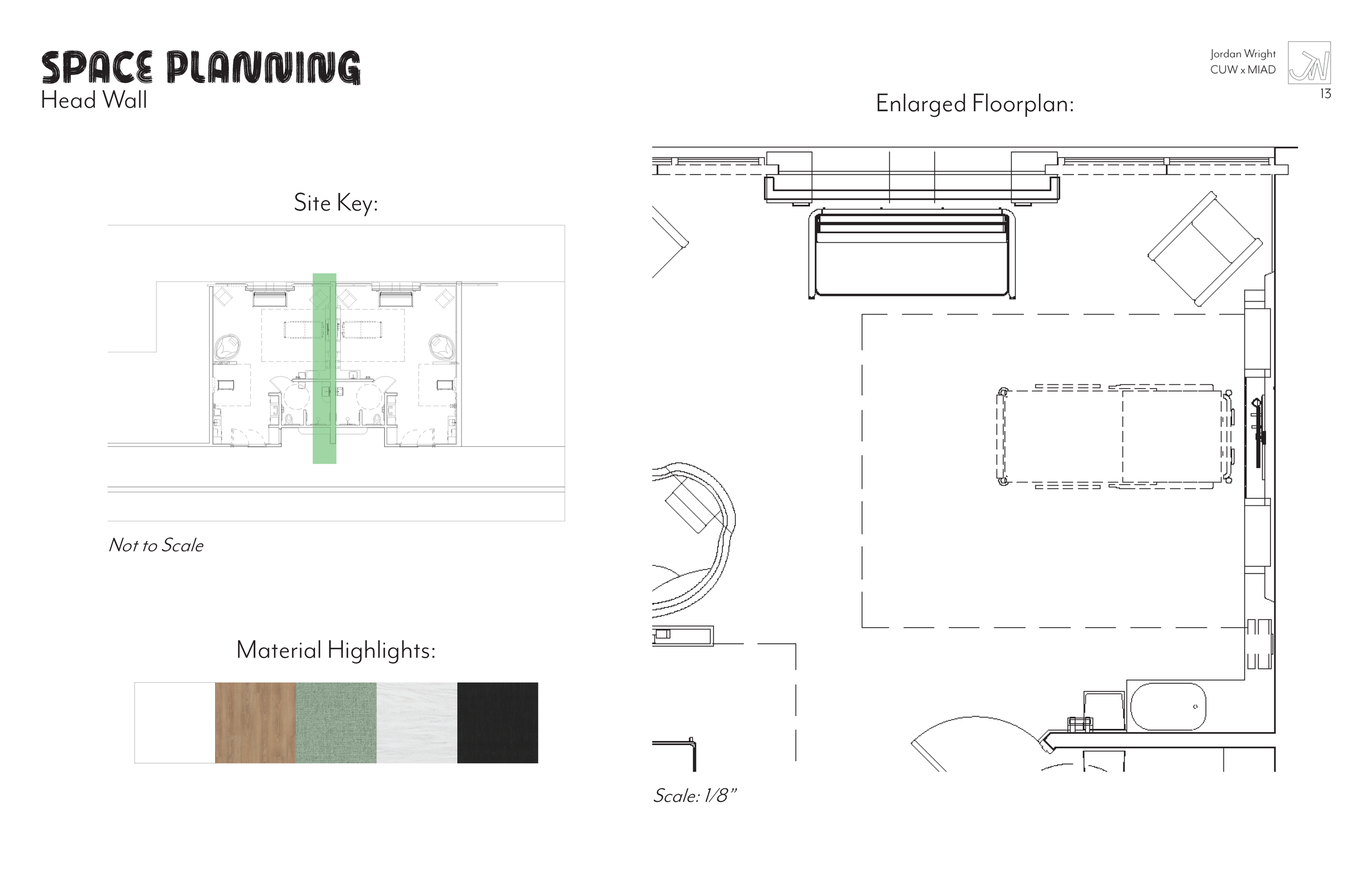

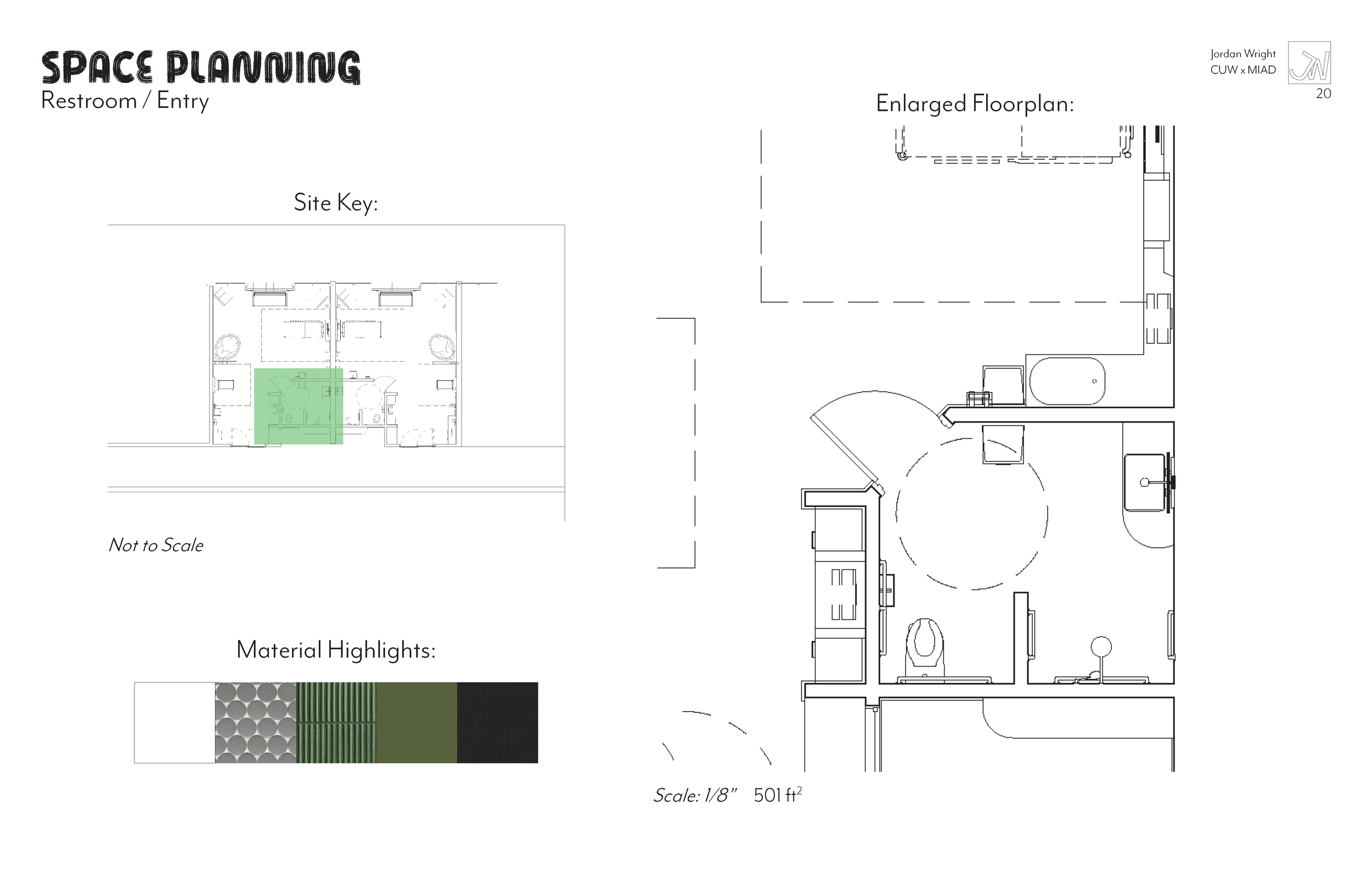

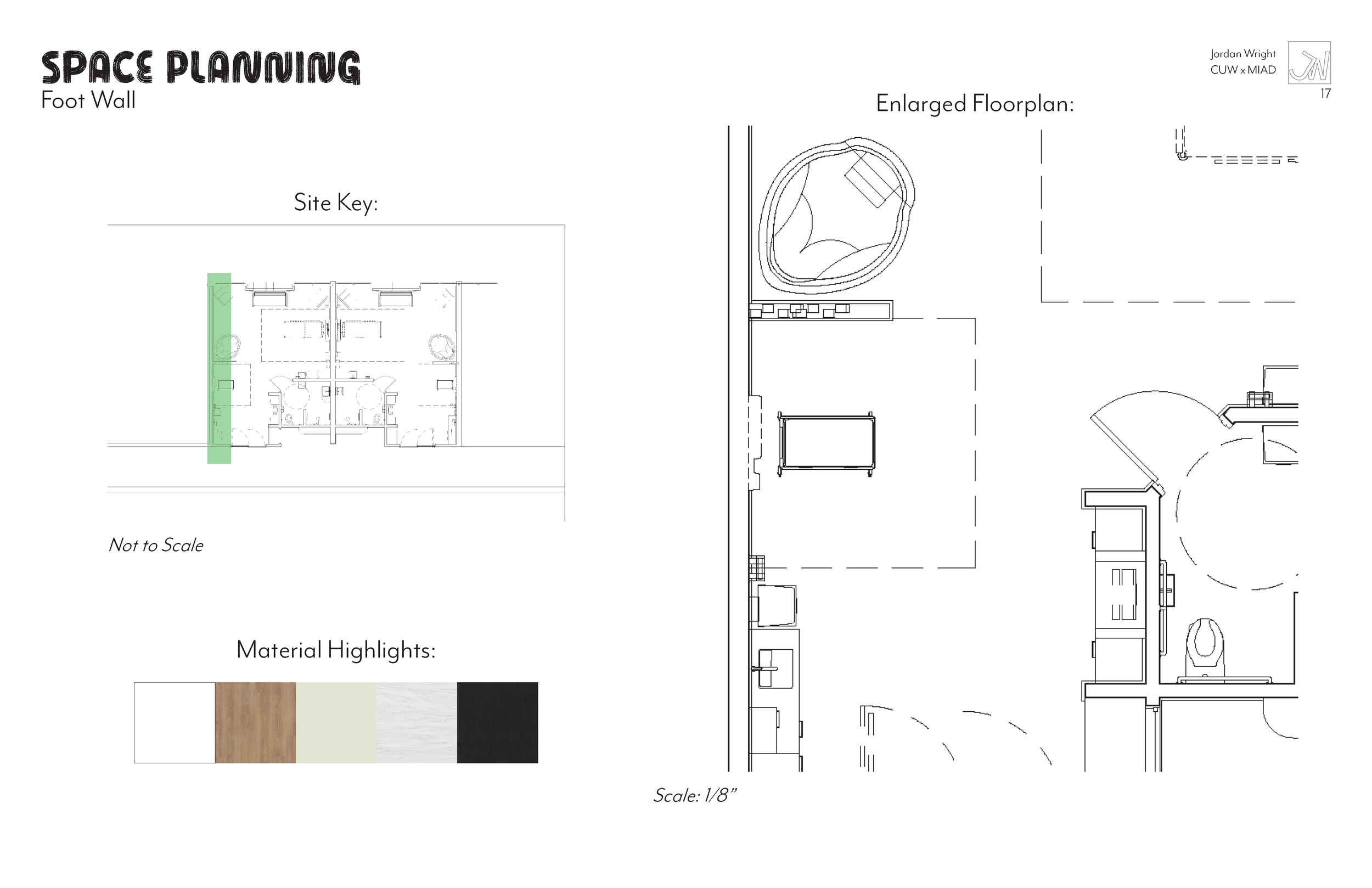

Architectural floor plan with detailed room layout, furniture arrangement, and material highlights for a space planning project.

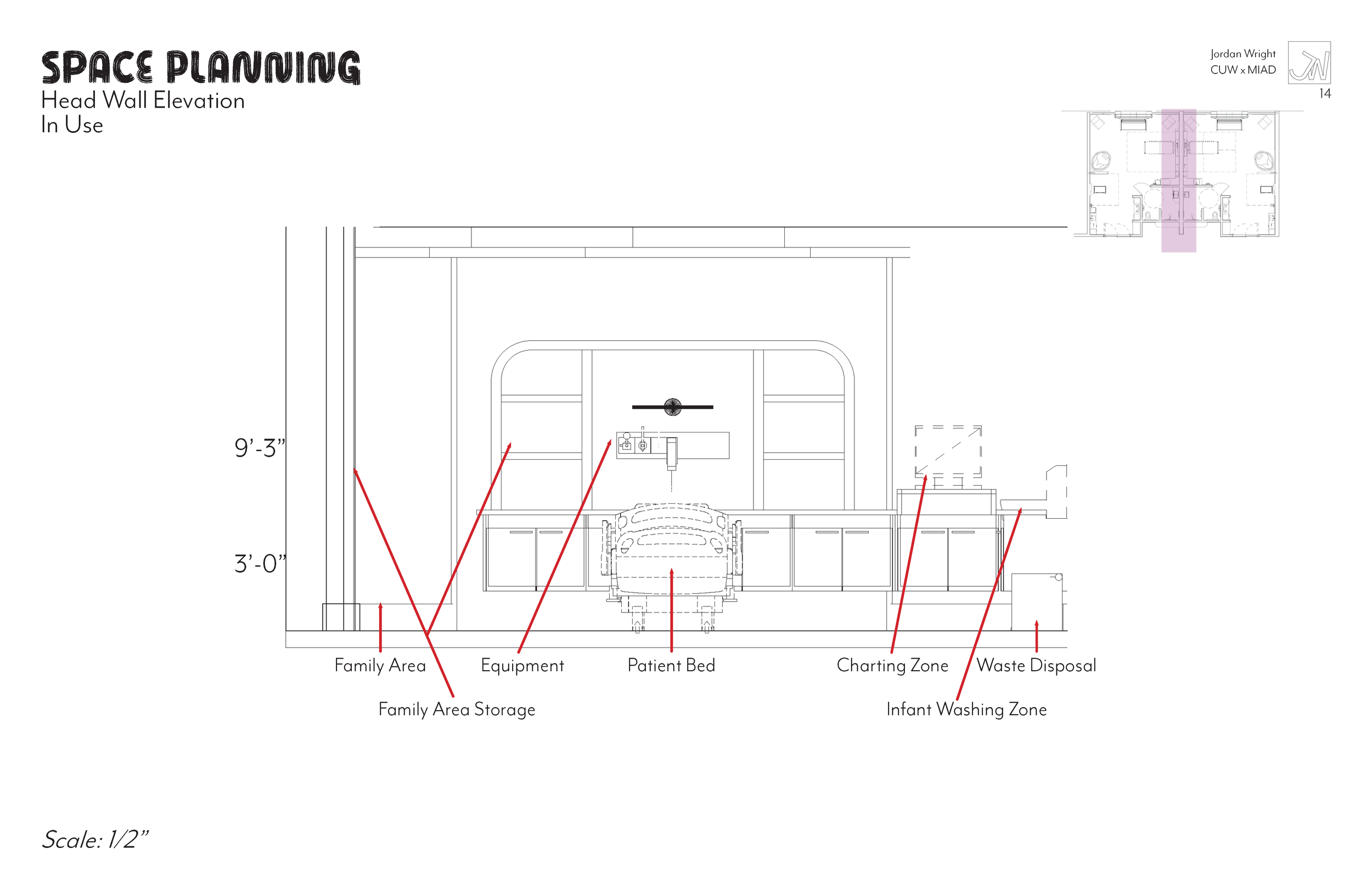

Architectural plan of a hospital room labeled 'Space Planning Head Wall Elevation In Use,' with annotations marking areas such as Family Area, Equipment, Patient Bed, Charting Zone, Waste Disposal, Family Area Storage, and Infant Washing Zone, includ

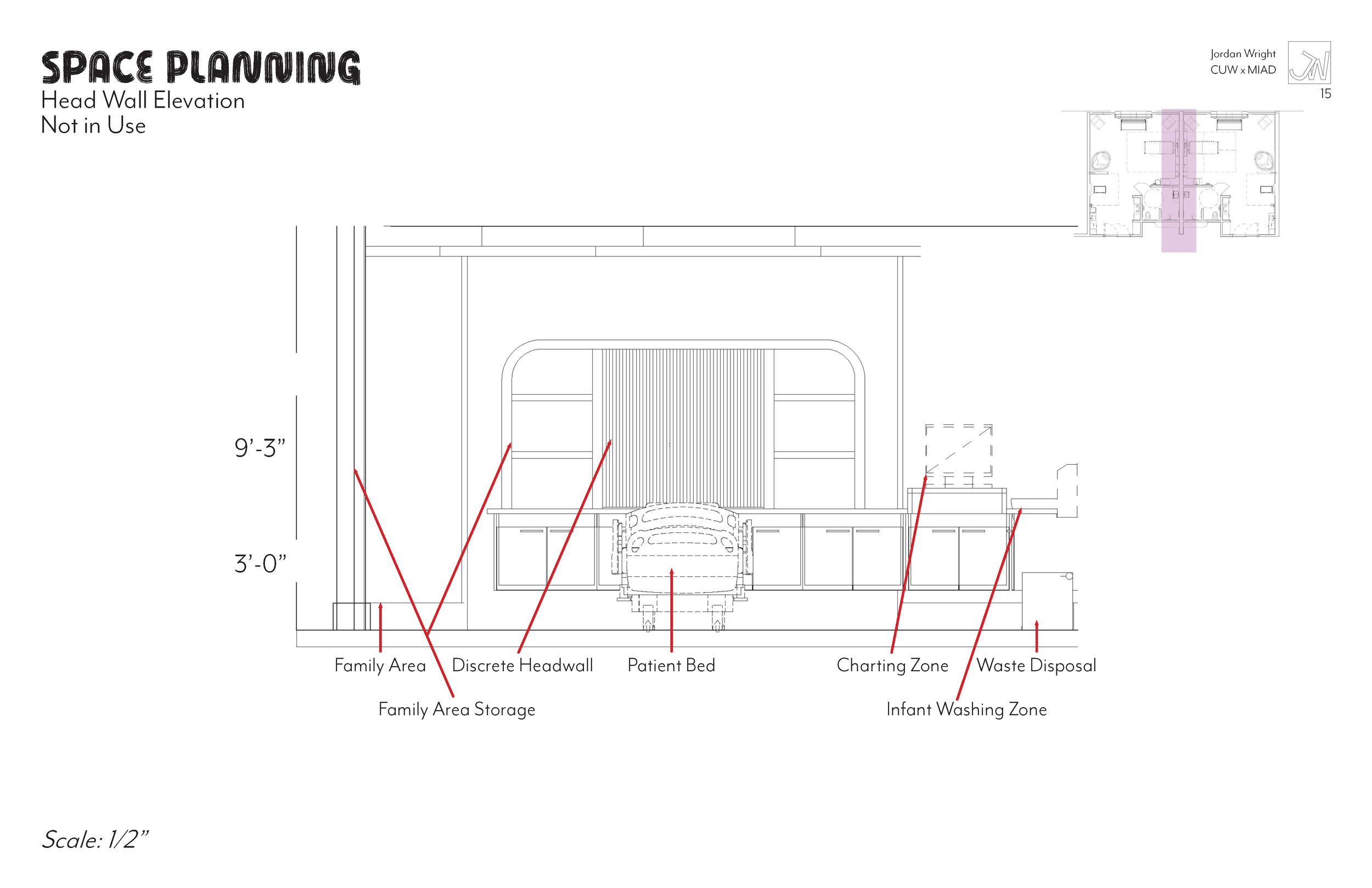

Blueprint of a hospital head wall elevation with labeled sections including family area, discrete headwall, patient bed, charting zone, infant washing zone, waste disposal, and family area storage, with measurements of 9 feet 3 inches and 3 feet.
